| Model | EV-10.24N |
| Total Energy [kWh] | 10.24 |
| Capacity [Ah] | 200 |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [M] | 48V-51.2V |
| MAX.Charge & Discharge Current[A] | 100 |

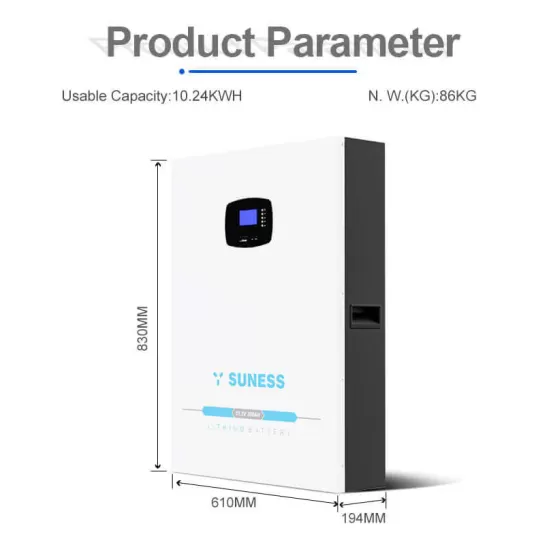

| Dimension[W×DxH,mm] | 610*185**830 |
| Net Weight [Kg] | 86 |
Introduction

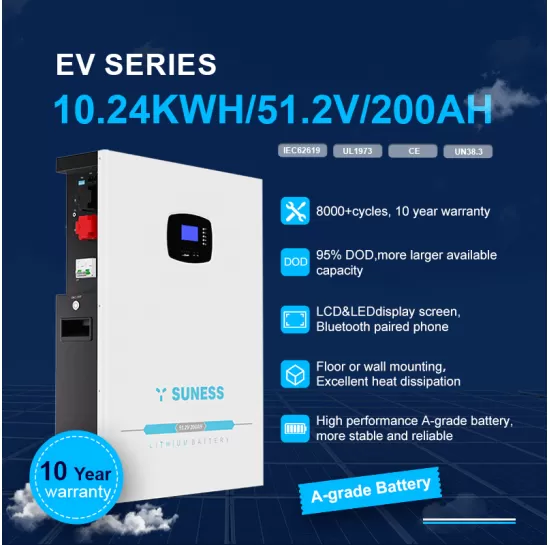

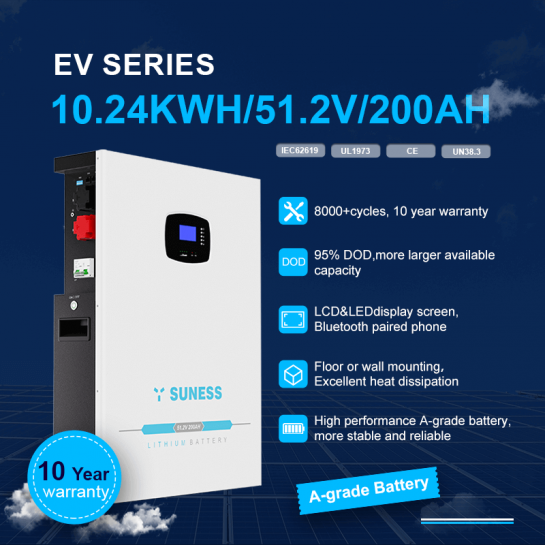

48V 200Ah LiFePO4 Storage Battery
95% Depth of Discharge for Enhanced Usable Capacity
10-Year Warranty for Peace of Mind
Over 8000 Cycles for Reliable Performance
Compatible with Most Solar Inverters
Supports CAN and RS485 Communication
Flexible Floor or Wall Mounting Options
| Model | EV-5.12N | EV-10.24N | EV-15.36N |
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Capacity [Ah] | 100 | 200 | 300 |
| Nominal Voltage [V] | 51.2 | 51.2 | 51.2 |
| Voltage Range [V] | 48-57.6 | 48-57.6 | 48-57.6 |
| MAX. Charge & Discharge Current [A] | 60 | 100 | 150 |
| Peak Charge & Discharge Current [A] (for 10 sec.) | 100 | 120 | 200 |
| Product Dimension(MM) | 660×430×185MM | 830×610×194MM | 905×470×250MM |
| Net Weight [Kg] | 44 | 86 | 120 |

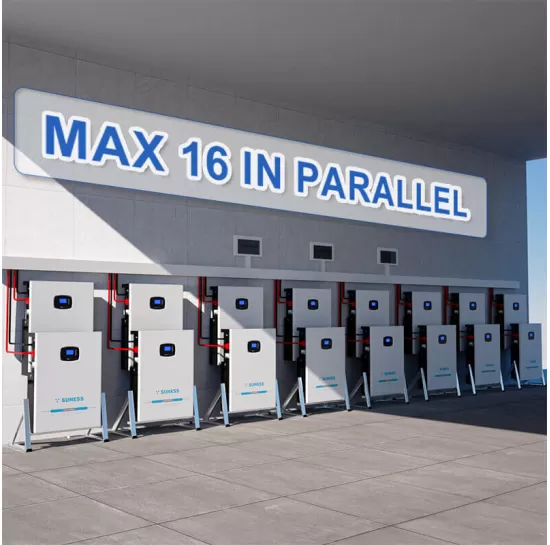

| Scalable | 1~16in parallel | ||
| Communication | CAN,RS485 | ||
| Communicated Inverter | GOODWE/Victron/SOFAR/DEYE/Growatt/MEGAREVO/SRNE | ||
| Enclosure Protection Rating | IP21 | ||
| Charging Temp Range [°c] | 0~55 | ||
| Discharging Temp Range [℃] | -10 ~55 | ||
| Cycle Life | ≥8,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| Warranty | 10 years | ||
| Certification | IEC62619,UN38.3,CE | ||
Elegant Design & Quiet Operation
Designed to blend into your home seamlessly, our batteries operate quietly, allowing you to enjoy functionality without compromising style, whether indoors or outdoors.
Eco-Friendly & Sustainable
Using Lithium Iron Phosphate (LiFePO4) technology, our batteries are a greener choice, offering a longer lifespan and enhanced safety compared to traditional batteries for a more sustainable future.
High Efficiency & Performance
Engineered for efficient power storage, our solar batteries ensure that energy generated from solar panels is fully utilized, especially during low generation periods like nighttime or cloudy days.
Unmatched Warranty
Our home energy storage batteries offer the longest warranty in the industry, providing assurance of durability and long-term reliability.

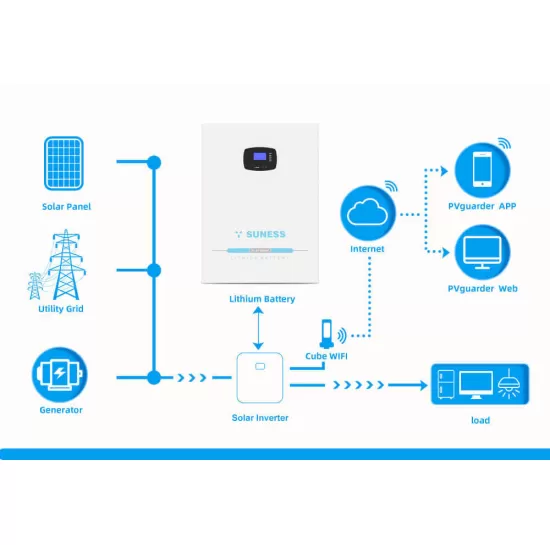

Seamless Solar Integration
Compatible with most solar inverters, our batteries facilitate easy installation and optimal performance within any solar energy system.
Advanced Battery Management System (BMS)
Featuring a sophisticated BMS, our batteries enhance safety and efficiency by continuously monitoring health and performance, extending lifespan and preventing issues.
