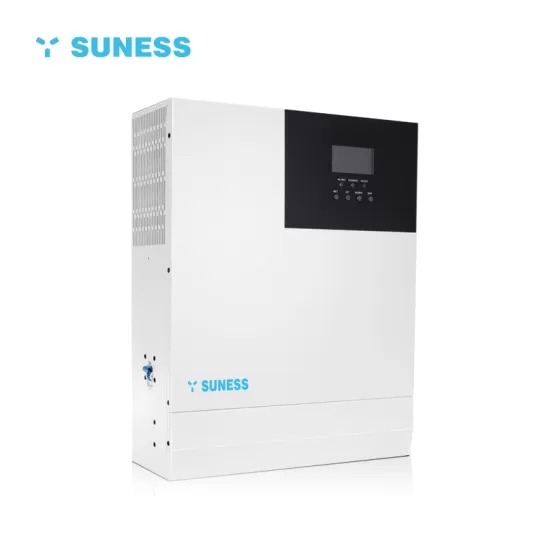

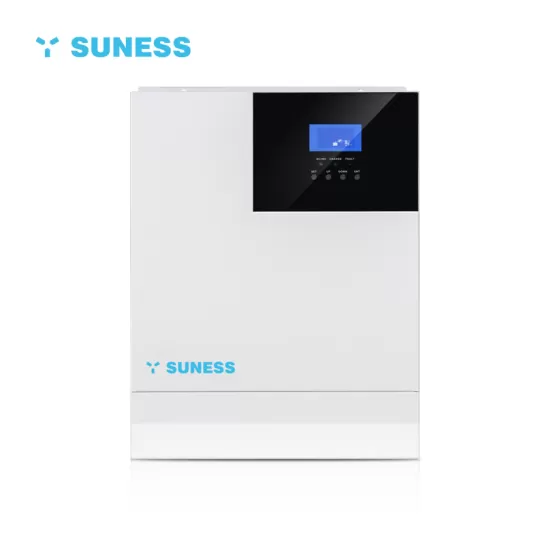

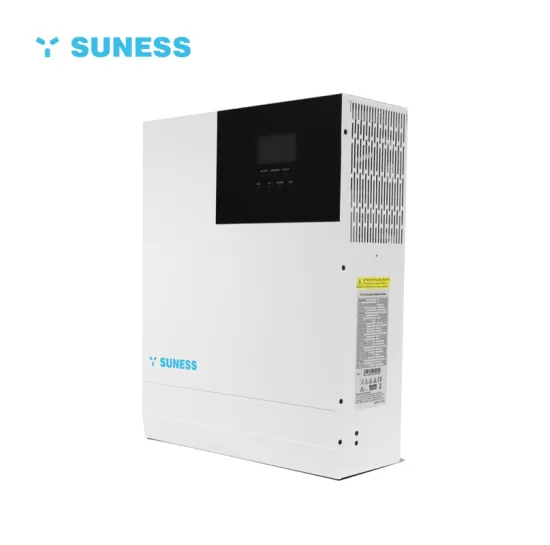

HIU3024 24V|110V output|Solar Inverter

ModelHIU3024
Rated outpot power(W)3000
MAX. PV Charging500V
Rated battery input Voltage24V
Phase1-Phase
ApplicationHome
Dimension[W×DxH,mm]426×322×126
Net Weight [Kg]10.9KG


Introduction

HIU Series

Advanced MPPT with up to 99.9% eficiency

Outputs high-quality pure sine wave AC power

360 degrees of security from hardware to software

With IEC,SAA,CETL , FCC certification

Reliable output for long periods at rated power

Multiple charge and discharge modesare available

Easy to install and simple to use

Support for many types of batteries

High PV input voltage range(120~450VDC)

Support for remote monitoring of operating parameters

110v single phase

Built-in 80A MPPT solar charge

Specification


HIU-3024HIU5548
INVERTER OUTPUT

Rated Output Power3,000W5,000W
Max.Peak Power6,000VA10,000VA
Rated Output Voltage120Vac  (LIN/PE single phase)
Load Capacity  of Motors2HP4HP
Rated AC Frequency50Hz/60Hz
WaveformPure Sine Wave
Switch Time1Oms(typical)
BATTERY
Battery TypeLi-ion/Lead-Acid/User Defined
Rated Battery  Voltage24Vdc48Vdc
Voltage Range20-33Vdc40-60Vdc
Max.MPPT Charging Current80A80A
Max.Mains/Generator Charging Current40A
Max.Hybrid  Charging Current80A
PVINPUT
Num. of MPPT Trackers1
Max.PV Array Power4,000W5,200W
Max.Input Current13A18A
Max.Voltage  of Open Circuit500Vdc
MPPT Voltage Range120-450Vdc
MAINS/GENERATOR INPUT
Input Voltage Range90-140Vac
Frequency Range50Hz/60Hz
Bypass Overload Current40A40A
EFFICIENCY

MPPT Tracking E佑ciency99.9%
Max . Battery Inverter Efficiency92%
GENERAL
Dimensions378*280*103mm(1.2
*0.9*0.3ft)
426*322*126mm   (1.3*1*0.4ft)
Weight8kg (17.61b)10.9kg (241b)
Protection DegreeIP20, lndor Only
Operating Temperatu「e Range-1 5°C~55°C(5°F ~55°F)
Noise<60dB
Cooling MethodInternal Fan
COMMUNICATION
Embedded InterfacesRS485/CAN/USB/Dry contact
External Modules(Optional)Wi-Fi/GPRS
