| Model | HIS5548 |
| Rated outpot power(W) | 5500 |
| MAX. PV Charging | 500V |
| Rated battery input Voltage | 48V |
| Communication | RS485&RS232 |
| Application | Home |
| Dimension[W×DxH,mm] | 472×298×129 |
| Net Weight [Kg] | 10.5 |
HIP Series
Output power factor 1.0
Programmable supply priority for PV,battery or Grid
User-adjustable charge current and voltage
Wide PV input range(120Vdc-500Vdc),110A MPPT SCC
Working without batteries in sunny day
WiFi Monitoring Function(optional)
Anti-dusk kit for harsh environment(optional)
LCD remote control with 10 meters wire(optional)

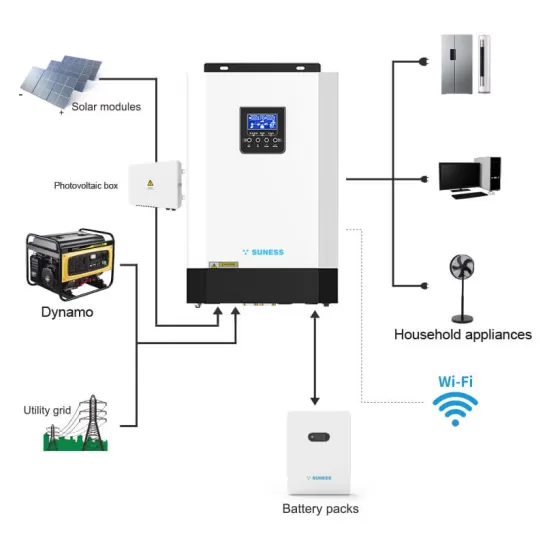

PV and electricity complementary
Use with lithium batteries
| INVERTER MODEL | HIS-3524 | HIS-5548 |
| Input Voltage Waveform | Sinusoidal(utility or generator) | |
| Nominal Input Voltage | 230Vac | |
| Low Loss Voltage | 170Vac±7V(UPS) 90Vac±7V(Appliances) | |
| Low Loss Return Voltage | 180Vac±7V(UPS); 100Vac±7V(Appliances) | |
| High Loss Voltage | 280Vac±7V | |
| High Loss Return Voltage | 270Vac±7V | |
| Max AC Input Voltage | 300Vac | |
| Nominal Input Frequency | 50Hz/ 60Hz(Auto detection) | |
| Low Loss Frequency | 40±1Hz | |
| Low Loss Return Frequency | 42±1Hz | |
| High Loss Frequency | 65±1Hz | |
| High Loss Return Frequency | 63±1Hz | |
| Output Short Circuit Protection | Line mode:Circuit Breaker Battery mode:Electronic Circuits | |
| Efficiency(Line Mode) | >95%(Rated R load, battery full charged) | |
| Transfer Time | 10ms typical(UPS); 20ms typical(Appliances) | |
| Utility Charging Mode | ||
| INVERTER MODEL | HiS-3524 | HiS-5548 |
| Charging Current(UPS) @ Nominal Input Voltage | 80A | 80A |
| Charging Algorithm | 3-Step | |
