| Model | MP-48100 |
| MAX. Outpot Current | 100A |
| MAX. PV Charging | 155V |
| System voltage | 48V |
| MPPT efficiency | 98% |
| OEM | Accept OEM Logo |
| Dimension[W×DxH,mm] | 292×207×87 |
| Net Weight [Kg] | 3.1 |
MP Series
Advanced dual or multi-peak tracking technology
Conversion efficiency≤98%
Load Rated Current 25A
3-stage charging (MPPT charging, boost charging, floating charging)
RS232/485 Communication
Supports capacitive load instantaneous high current start
Load Overcurrent/Short Circuit Protection/Over temperature protection
PV/BAT anti-reverse connection protection
TVS Lightning Protection
Supports the parallel use of multiple controllers
| MODEL | MP-4880 | MP-48100 |
| PV INPUT(PV) | ||
| Maximum PV Voltage(VOC) | 155V | |
| System Voltage | 12V/24V/48V auto;36V set | |
| MPPT Voltage Range | Battery voltage+3V-120V | |
| Suggest Input VOC Voltage | PV array open circuit voltage 22V/40V/60V/80V for system 12V/24V/36V/48V | |
| Number Of MPPT Trackers | 1 | |
| MAX. PV INPUT POWER | ||
| 12V | 1200W | 1500W |
| 24V | 2400W | 3000W |
| 36V | 3600W | 4500W |
| 48V | 4800W | 6000W |
| CHARGER OUTPUT(DC) | ||
| Max.Output Current(revisable) | 80A 100A | |
| Rated Load Current | 25A | |
| Max.Capacitive Load Capacity | 10000uF | |
| Ripper Voltage | <0.5% | |
| Applicable Battery Type (ex-factory default lead-acid battery) | SLD (sealed lead-acid battery)/GEL(gelled lead-acid battery)/ FLD(flooded lead-acid battery)/LFP(lithium iron phosphate battery),NCM(ternary lithium battery)/USE(customize) | |
| EFFICIENCY | ||
| Max.Eficiency | <98% | |
| MPPT Efficiency | >99% | |
| PROTECTION | ||
| Protect function | Input highvoltage protection ,output high/low voltage protection, PV/BAT anti-reverse connection protection, load over current protection,load short circuit protection, overtemperature protection, etc. | |
| REGULAR DATA | ||
| Unloaded Loss | ≤2.3W | |
| Dimension.D*W*H(mm) | 292*207*87mm | |
| Net Weight (kgs) | 3.1kg | |
| Elevation Height | 0% to 95%(No condensat) | |

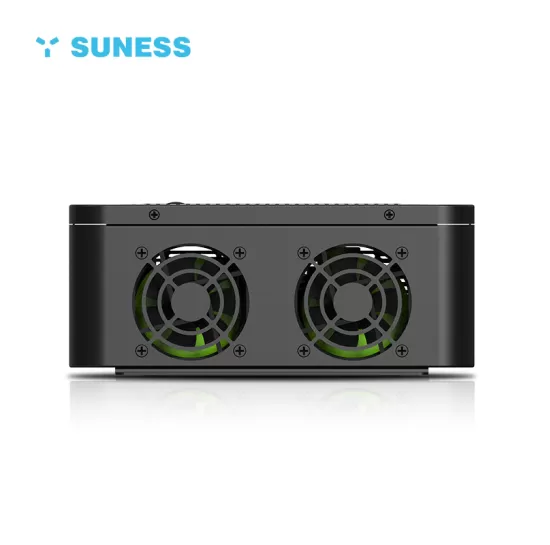

| Cooling Concept | Fan | |
| IP Rate | IP 20 | |
| Communication Interface | RS232(Extensible interface) | |
Exceptional Conversion Efficiency:
Achieve exceptional energy conversion with efficiency levels reaching up to 98%. Our controller ensures that the power generated by your solar panels is harnessed and utilized to its fullest potential.
Intelligent 3-Stage Charging:
Benefit from intelligent charging with our 3-stage charging system—MPPT charging, boost charging, and floating charging. Optimal charging strategies to extend battery life and maintain peak performance.
Highly Adaptable:
Our controller supports capacitive load instantaneous high current start, offering flexibility in adapting to diverse energy demands. It is designed to handle various loads with ease.
