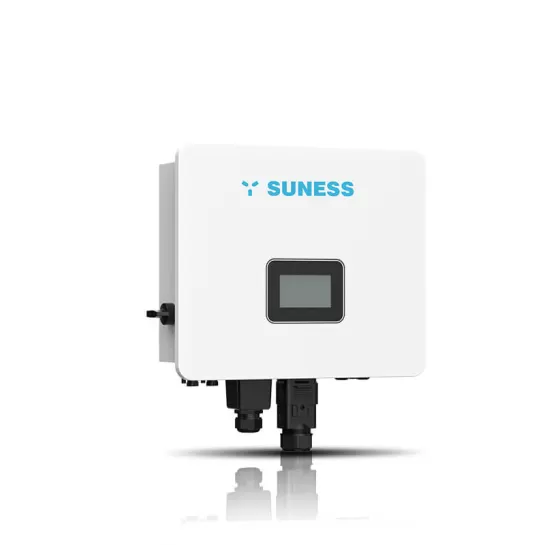

| Model | EH-5KL1 |
| Rated outpot power(W) | 5000 |
| Ingress protection | IP65 |
| Rated battery input Voltage | 48V |
| Communication | CAN/485 |
| Application | Home |
| Dimension[W×DxH,mm] | 455*215*385 |
| Net Weight [Kg] | 20.7 |
EH Series
Supports grid-connected and off-grid AC coupling functions
Support intelligent load management (customized)
Support three-phase and multi-machine parallel connection
Support BMS remote upgrade function (customized)
Built-in MPPT controller
| Model | EH-5KL1 | EH-6KL1 |
| Max. power (kW) | 7.5 | 9 |
| Start-up voltage (V) | 100 | |
| Max. DC voltage (V) | 550 | |
| MPPTvoltage range/ ratedvoltage(V) | 80-500/360 | |
| PV/(Isc) (A) | 24/ 24 | |
| Max.input current of each component (A) | 16/16 | |
| No. of MPPT | 2 | |
| No.of stringsper MPPT tracker | 1/1 | |
| Rated output power (kVA/kW) | 5/5 | 6/6 |
| Max. output current (A) | 21.7 | 28.7 |
| Grid voltage/range (Vac) | 230/176 ~ 270 | |
| Rate grid frequency (Hz) | 50/60 | |
| Power factor | 1(0.8leading…0.8lagging) | |
| AC grid type | L+N+PE | |
| Battery | ||
| Battery voltage range (V) | 40~58 | |
| Max. charge/discharge current (A) | 100/100 | 120/120 |
| Communication interface | CAN/485 | |
| Emergency power output | ||
| Rated power (kVA/kW) | 5/5 | 6/6 |
| Rated output voltage (Vac) | 230 | |
| Rated output current (A) | 21.7 | 26 |
| Rated output frequency (Hz) | 50/60 | |
| Automatic switchover time (ms) | ≤10 | |
| THDu | <2% | |
| General data | ||
| Battery chage/dischageefficiency | 96% | |
| Max. efficiency | 97.2% | |
| Europe efficiency | 97% | |
| MPPT efficiency | 99.9% | |
| Ingress protection | IP65 | |
| Noise emission (dB) | <35 | |
| Operation temperature (℃) | -25～ 60 | |
| Cooling | Natural | |
| Relative humidity | 0 ~95%（Non-condensing） | |
| Operating altitude (m) | 2,000 (>2,000 Derating) | |
| Dimensions W*D*H (mm) | 455*215*385 | |
| Net weight (kg) | 20.7 | |
| Isolation transformer | / | |
| Standby loss (W) | <15 | |
SUNESS, with strong manufacturing capabilities and extensive participation in international solar energy expositions, we focus on the research and production of cutting-edge photovoltaic energy storage solutions. Our advanced manufacturing facilities ensure the production of efficient and reliable energy storage systems. With a global sales and service network, we provide customers with excellent support and service experience.
At many international solar energy expositions, we have continuously demonstrated technological innovation and product advantages, establishing our industry-leading position. Our products not only have excellent performance, but also have multiple international certifications such as IEC and UL to ensure safety and reliability.
Our factories adhere to strict quality inspection processes and cooperate with well-known raw material suppliers to ensure the production of A+ grade battery cells. The commitment to quality consolidates our ability to provide excellent product reliability and efficiency.
We are committed to providing comprehensive energy solutions to support our customers' success in energy transformation and sustainable development. No matter where you are, we can provide customized solutions that meet your specific needs, backed by excellent product quality and professional services.
Choose us as your trusted energy partner and let us pave the way for a cleaner energy future together.
