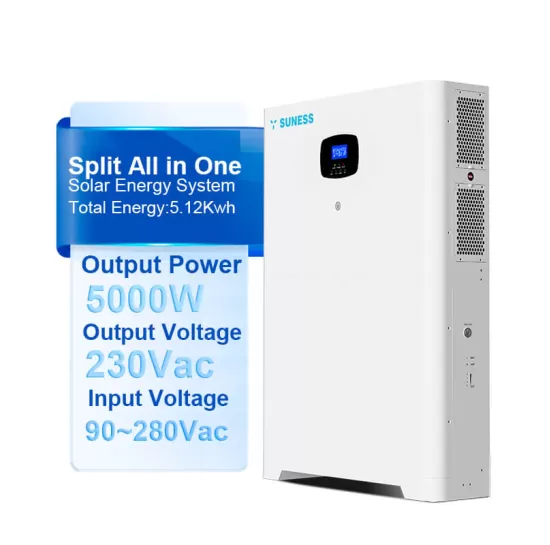

| Model | SUN 500-5.12L |
| Total Energy [kWh] | 5.12 |
| Output Power[W] | 5000 |
| Output Voltage [V] | 230 |
| Battery Type | LiFePO4 |
| Parallel Capacity | 1-3 units |
| Dimension[W×DxH,mm] | 617*170*905 |
| Net Weight [Kg] | 68 |
Introduction
LCD screen with real-time data
High quality lithium iron phosphate cells
Multiple charge and discharge modes available
Up to 3 batteries in parallel expand to 15.36kWh
Built-in BMS and MPPT solar charge controller
No matching and commissioning required,ready to install
| Model | SUN 5000-5.12L | SUN 5000-10.24L | SUN 5000-15.36L |
| INVERTER MODULE | |||
| Output | |||
| Nominal Output Power[W] | 5000 | ||
| Max. Peak Power[VA] | 10000 | ||
| Load Capacity of Motor[HP] | 4 | ||
| Wave Form | Pure Sine Wave | ||
| Rated Output Voltage(can be set)[Vac] | 230 (200~240Vac) | ||
| Output Mode | Off-grid/Hybrid | ||
| PV Input | |||
| Solar Charge Type | MPPT | ||
| Num. of MPPT Trackers | 1 | ||
| Max. PV Array Power[W] | 5500 | ||
| Max. PV Open Circuit Voltage[Vac] | 500 | ||
| Grid / Generator Input | |||
| Input Voltage Range[Vac] | 90~280 | ||
| Bypass Overload Current[A] | 40 | ||
| Battery Charging | |||
| Solar Charging Current Range (can be set)[A] | 0~100 | ||
| Grid/Generator Charging Current Range (can be set)[A] | 0~60 | ||
| General | |||
| Dimension [W x D x H, mm] | 640*170*420 | ||
| Net Weight [Kg] | 16 | ||
| BATTERY MODULE | |||
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Voltage Range [V] | 48~57.6 | 48~57.6 | 48~57.6 |
| Capacity [Ah] | 100 | 200 | 300 |
| Battery Type | LiFePO4 | ||
| Max. Parallel Capacity (can be set) | 1~3units （up to 15.36kWh） | ||
| Cycle Life | ＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| REGULAR DATA | |||
| Communication with BMS | RS485 | ||
| Working Temperature Range [℃] | -10 ~ 50 | ||
| Enclosure Protection Rating | IP21 | ||
| System Certification | IEC62619,UN38.3,CE | ||
| Warranty | Inverter(3 years)， Battery(5 years) | ||
| Dimension [W x D x H, mm] | 617*170*905 | 640*170*1335 | 640*170*1765 |
| Net Weight [Kg] | 68 | 116 | 174 |

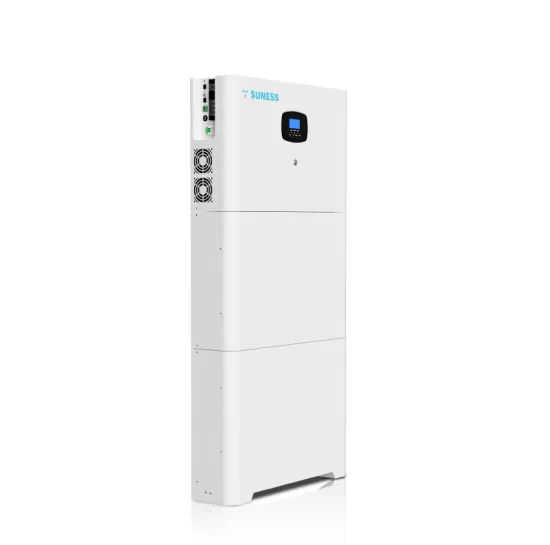

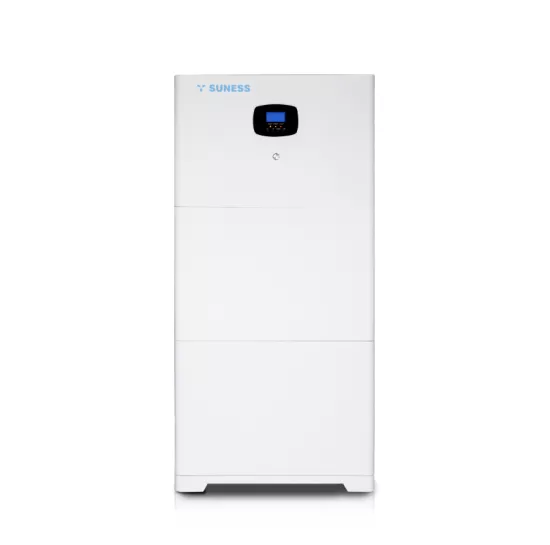

SUN 5000 series machine product that combines an inverter and a battery is a solar inverter battery all-in-one machine. This product integrates solar photovoltaic panels, inverters and battery components to realize the collection, storage and utilization of solar energy. Solar photovoltaic panels are responsible for converting solar energy into electrical energy, inverters convert direct current into alternating current for use, and batteries are responsible for storing excess electrical energy for use at night or on cloudy days. This machine product has the advantages of energy saving and environmental protection, high utilization rate of renewable energy, and is widely used in household, commercial and industrial fields.
Installation Location Requirements
Long warranty inverter battery
Multiple charge and discharge modes available
Built-in BMS and MPPT solar charge controller
No matching and commissioning required,ready to install
10 years + R&D team
The most competitive price
Free after-sales maintenance
We provide OEM/ODM service
