| Model | ES-15.36L |
| Total Energy [kWh] | 15.36 |
| Capacity [Ah] | 300 |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [M] | 48V-51.2 |
| MAX.Charge & Discharge Current[A] | 120 |
| Dimension[W×DxH,mm] | 577×680×280 |
| Net Weight [Kg] | 110 |
Introduction

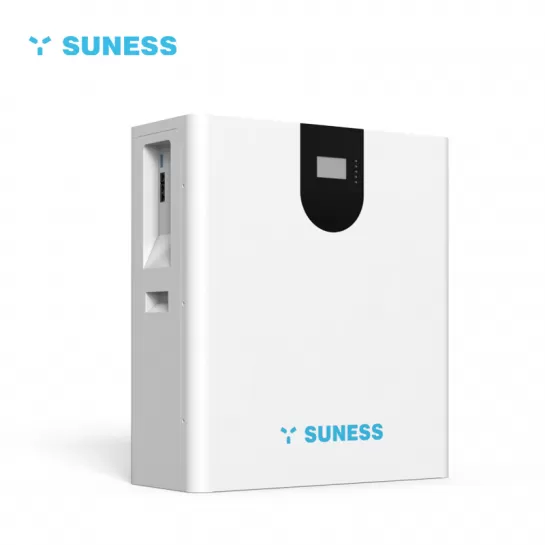

48V 15.36KWH/17.92KWH LiFePO4 Battery
Comprehensive BMS to match all Hybrid Inverters
Convenient Rs485/CAN communication
Max. 16 PCS in parallel
Applied to residential PV energy storage system and
commercial PV energy storage system.
Battery management system(BMS)：The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
| Model | ES-5.12L | ES-10.24L | ES-15.36L | ES-17.92L |
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 | 17.92 |
| Capacity [Ah] | 200 | 200 | 300 | 350 |
| Nominal Voltage [V] | 25.6 | 51.2 | 51.2 | 51.2 |
| Voltage Range [V] | 21-28.8 | 48-57.6 | 48-57.6 | 48-57.6 |
| MAX. Charge & Discharge Current [A] | 50 | 80 | 120 | 150 |
| Peak Charge & Discharge Current [A] (for 10 sec.) | 80 | 120 | 150 | 200 |
| Dimension [W x D x H, mm] | 220*270*550 | 610×160×800 | 577*680*280 | 721*680*280 |
| Net Weight [Kg] | 34 | 72 | 110 | 135 |
| Scalable | 1~16 in parallel | |||
| Communication | CAN,RS485 | |||
| Communicated Inverter | GOODWE / Victron / SOFAR / Deye / Growatt / Solis / SMA / SRNE | |||
| Enclosure Protection Rating | IP21 | |||
| Working Temperature Range [℃] | -10 ~ 50 | |||
| Cycle Life | ＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | |||
| Warranty | 5 years | |||
| Certification | IEC62619,UN38.3,CE | |||
1. Design combined with local culture 2. Sales through official channels, ensuring free and high-quality after-sales service 3. Comprehensive customization: battery cell customization, appearance customization and store design customization (BMS independent research and development does not recommend customization)
Why choose us?
1. 10 years + R&D team.
2. The most competitive price.
3. 24-hour online consultation.
4. We provide OEM/ODM service.
5. Overseas warehouse stock, timely delivery.
6. Free after-sales maintenance at global stations.
7.UL, CE, UN38.3, MSDS, IEC, ISO certificates.
8.Provide Professional Solar Solutions.
