| Model | EV-5.12N |
| Total Energy [kWh] | 5.12 |
| Capacity [Ah] | 100 |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [M] | 44.8-57.6V |
| MAX.Charge & Discharge Current[A] | 100 |
| Dimension[W×DxH,mm] | 660*430*165 |
| Net Weight [Kg] | 46 |
Introduction
95% Depth of Discharge (DOD) for maximum usable capacity.
Over 10000 charge cycles for extended battery life.
Integrated CAN & RS485 communication for seamless system integration.
Supports cloud platform management for remote monitoring and control.
Supports up to 16 batteries in parallel for expanded capacity.
Reliable operation at altitudes up to 2000m.
Communicates with Deye, Growatt, Voltronic, Solis, Solax, SMA and more solar inverter.
| Model | EV-5.12N | EV-10.24N | EV-15.36N |
| Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
| Capacity [Ah] | 100 | 200 | 300 |
| Nominal Voltage [V] | 51.2 | 51.2 | 51.2 |
| Voltage Range [V] | 44.8-57.6 | 44.8-57.6 | 44.8-57.6 |
| MAX. Charge & Discharge Current [A] | 60 | 80 | 150 |
| Peak Charge & Discharge Current [A] (for 10 sec.) | 100 | 100 | 200 |
| Product Dimension(MM) | 660×430×165MM | 830×610×194MM | 530*220*1030MM |
| Net Weight [Kg] | 46 | 86 | 125 |
| Scalable | 1~16in parallel | ||
| Communication | CAN,RS485 | ||
| Communicated Inverter | GOODWE/Victron/SOFAR/DEYE/Growatt/MEGAREVO/SRNE | ||
| Enclosure Protection Rating | IP21 | ||
| Charging Temp Range [°c] | 0~55 | ||
| Discharging Temp Range [℃] | -10 ~55 | ||
| Cycle Life | ≥10,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
| Warranty | 10 years | ||
| Certification | IEC62619,UN38.3,CE | ||

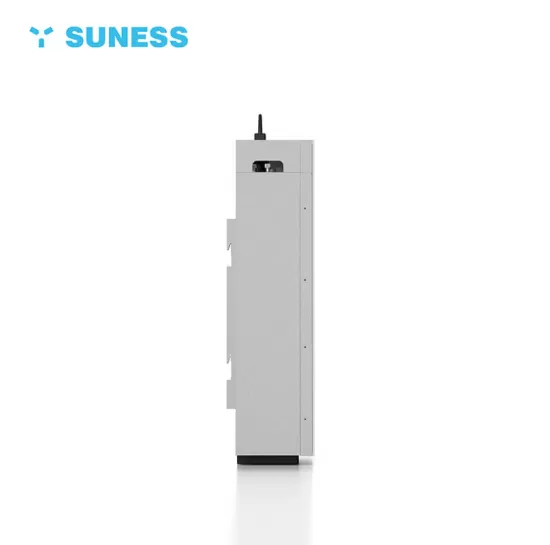

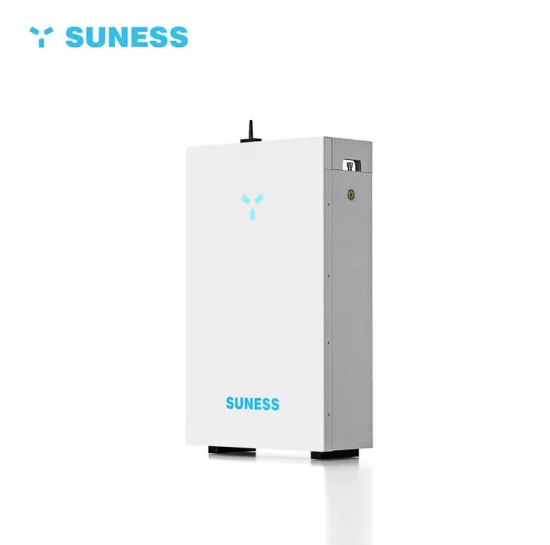

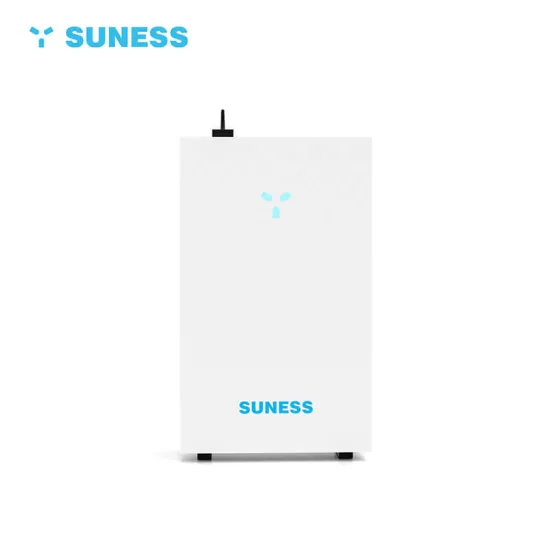

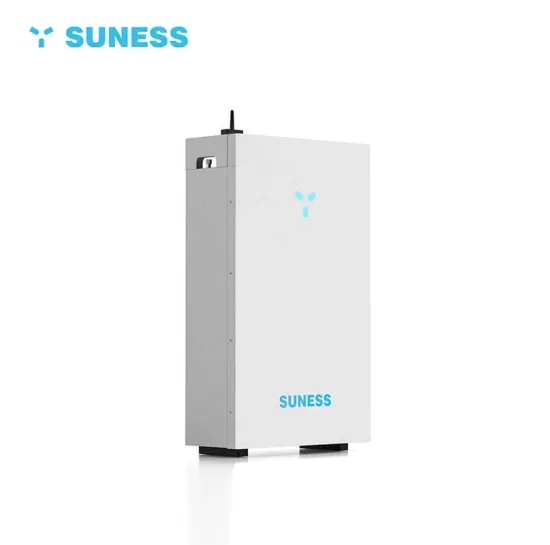

EV-5.12N--The 48V 100Ah 5kW energy storage system is designed for reliable and efficient power backup, offering 95% Depth of Discharge (DOD) for maximum usable capacity and over 10,000 charge cycles for long-term performance.
It features integrated CAN & RS485 communication, ensuring seamless compatibility with inverters like Deye, Growatt, Solis, and SMA. With flexible floor and wall mounting options, it adapts to various installation needs. Additionally, cloud platform support enables remote monitoring and management, while scalability up to 16 units in parallel ensures expanded storage capacity. Engineered for stability, it operates effectively at altitudes up to 2000m.
Experienced R&D team: With more than 10 years of experience, our professional R&D team is committed to technological innovation in the energy storage industry. This ensures our products are at the forefront of the industry in terms of innovation, reliability and meeting customer needs
Overseas Warehouse Stocking and Timely Delivery:
To ensure fast delivery, we have overseas warehouse stocking at strategic locations. This allows us to process orders quickly, shortening delivery times and ensuring you receive your products on time and avoid unnecessary delays.
Certified Product Quality:
Our products comply with international quality standards and have multiple certifications such as UL, CE, UN38.3, MSDS, IEC and ISO. These certifications ensure that our products are safe, reliable and comply with the industry's strict regulations.
In summary, choosing us means gaining access to a knowledgeable R&D team, competitive pricing, round-the-clock support, customizable solutions, efficient logistics, reliable after-sales service, certified quality, and expertise in solar solutions. We are committed to delivering high-quality products and exceptional customer experiences.
