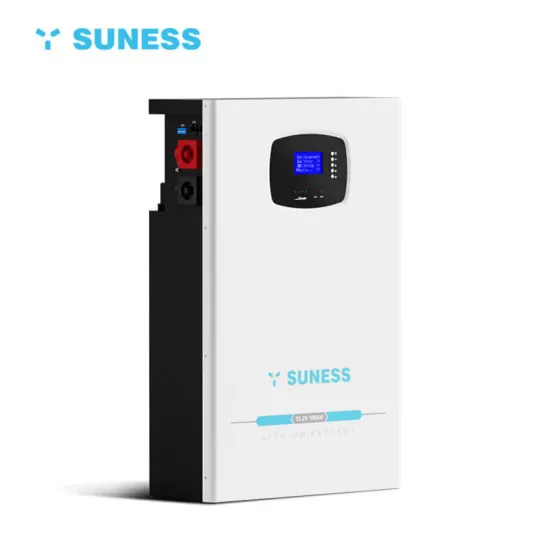

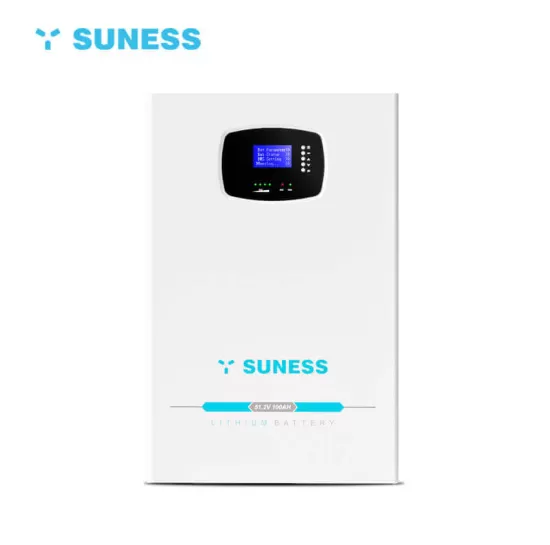

Model | EV-5.12N |
Total Energy [kWh] | 5.12 |
Capacity [Ah] | 100 |
Nominal Voltage [V] | 51.2 |
Voltage Range [M] | 48V-51.2V |
MAX.Charge & Discharge Current[A] | 60 |
Dimension[W×DxH,mm] | 660*430*185 |
Net Weight [Kg] | 44 |
Introduction
High usable capacity: 95% depth of discharge (DOD).
Long cycle life: a cycle life of more than 8,000 times.
Solar Inverter Compatibility: Compatible with most solar inverters.
Communication support: Supports CAN and RS485 communication
After-Sales Support: Enjoy free lifetime after-sales support.
Long-term warranty: 10-year warranty product guarantee
Model | EV-5.12N | EV-10.24N | EV-15.36N |
Total Energy [kWh] | 5.12 | 10.24 | 15.36 |
Capacity [Ah] | 100 | 200 | 300 |
Nominal Voltage [V] | 51.2 | 51.2 | 51.2 |
Voltage Range [V] | 48-57.6 | 48-57.6 | 48-57.6 |
MAX. Charge & Discharge Current [A] | 60 | 100 | 150 |
Peak Charge & Discharge Current [A] (for 10 sec.) | 100 | 120 | 200 |
Product Dimension(MM) | 660×430×185MM | 830×610×194MM | 905×470×250MM |
Net Weight [Kg] | 44 | 86 | 120 |
Scalable | 1~16in parallel | ||
Communication | CAN,RS485 | ||
Communicated Inverter | GOODWE/Victron/SOFAR/DEYE/Growatt/MEGAREVO/SRNE | ||
Enclosure Protection Rating | IP21 | ||
Charging Temp Range [°c] | 0~55 | ||
Discharging Temp Range [℃] | -10 ~55 | ||
Cycle Life | ≥8,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL | ||
Warranty | 10 years | ||
Certification | IEC62619,UN38.3,CE |
The following are several selling points about 48V 100AH lithium battery:
High energy density: 48V 100AH lithium battery has high energy density, can provide longer battery life, and is suitable for long-term energy storage needs.
High power output: Lithium batteries have excellent power output capabilities and can quickly release electrical energy to meet high power output requirements. This is very important for some application scenarios that require high power output in a short period of time, such as commercial PV energy storage systems.
Long life and cycle life: 48V 100AH lithium battery adopts advanced lithium-ion technology and has long service life and cycle life. This means they can withstand thousands of charge and discharge cycles, maintaining reliability and performance for longer periods of time.
Fast charging capability: Lithium batteries have a fast charging speed and can be fully charged in a short time. This provides convenience to users and is especially suitable for applications that require frequent charging.
Multiple safety protections: Lithium batteries are equipped with a complete battery management system (BMS), which provides a variety of safety functions, including overcharge protection, over-discharge protection, short circuit protection and temperature protection. These protective measures ensure the safe operation of the battery and prevent potential safety risks.
Strong scalability: 48V 100AH lithium battery supports up to 16 parallel connections and can be flexibly expanded according to actual needs. This means you can increase battery capacity based on actual demand to meet energy storage needs of different sizes.
Suitable for Residential and Commercial Applications: 48V 100AH lithium battery is suitable for residential and commercial PV energy storage systems. Whether providing backup power for private residences or providing energy storage solutions for commercial buildings, energy storage needs can be met for different sizes and needs.
In short, 48V 100AH lithium battery has the advantages of high energy density, high power output, long life, fast charging capability, multiple safety protections, and strong scalability. These advantages make it ideal for residential and commercial PV energy storage systems.
24-Hour Online Consultation: We understand that prompt communication is crucial in addressing customer inquiries and concerns. Our team of experts is available 24/7 to provide timely and comprehensive online consultations, ensuring that you receive the support you need whenever you need it.
Overseas Warehouse Stock and Timely Delivery: To ensure fast delivery, we maintain overseas warehouse stock in strategic locations. This allows us to quickly fulfill orders and minimize lead times, ensuring that you receive your products on time and without unnecessary delays.
Free After-sales Maintenance at Global Stations: We provide free after-sales maintenance services at our global stations, ensuring that any issues or concerns are promptly addressed. This commitment to customer satisfaction extends beyond the point of purchase, providing peace of mind and continued support throughout the lifespan of our products.
Certified Quality:
Our products meet international quality standards and are backed by certifications such as UL, CE, UN38.3, MSDS, IEC, and ISO. These certifications ensure that our products are safe, reliable, and adhere to rigorous industry regulations.
In summary, choosing us means gaining access to a knowledgeable R&D team, competitive pricing, round-the-clock support, customizable solutions, efficient logistics, reliable after-sales service, certified quality, and expertise in solar solutions. We are committed to delivering high-quality products and exceptional customer experiences.
